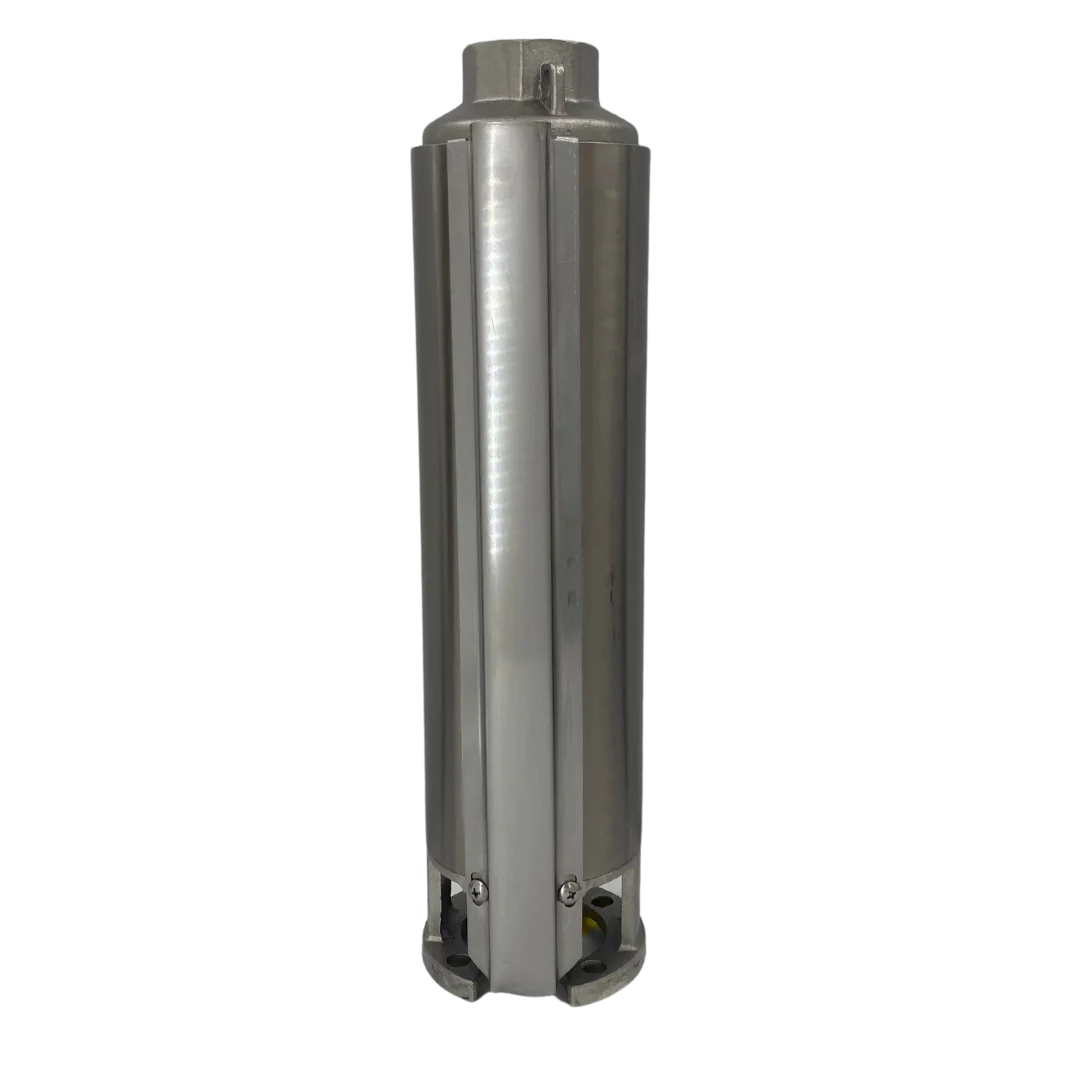

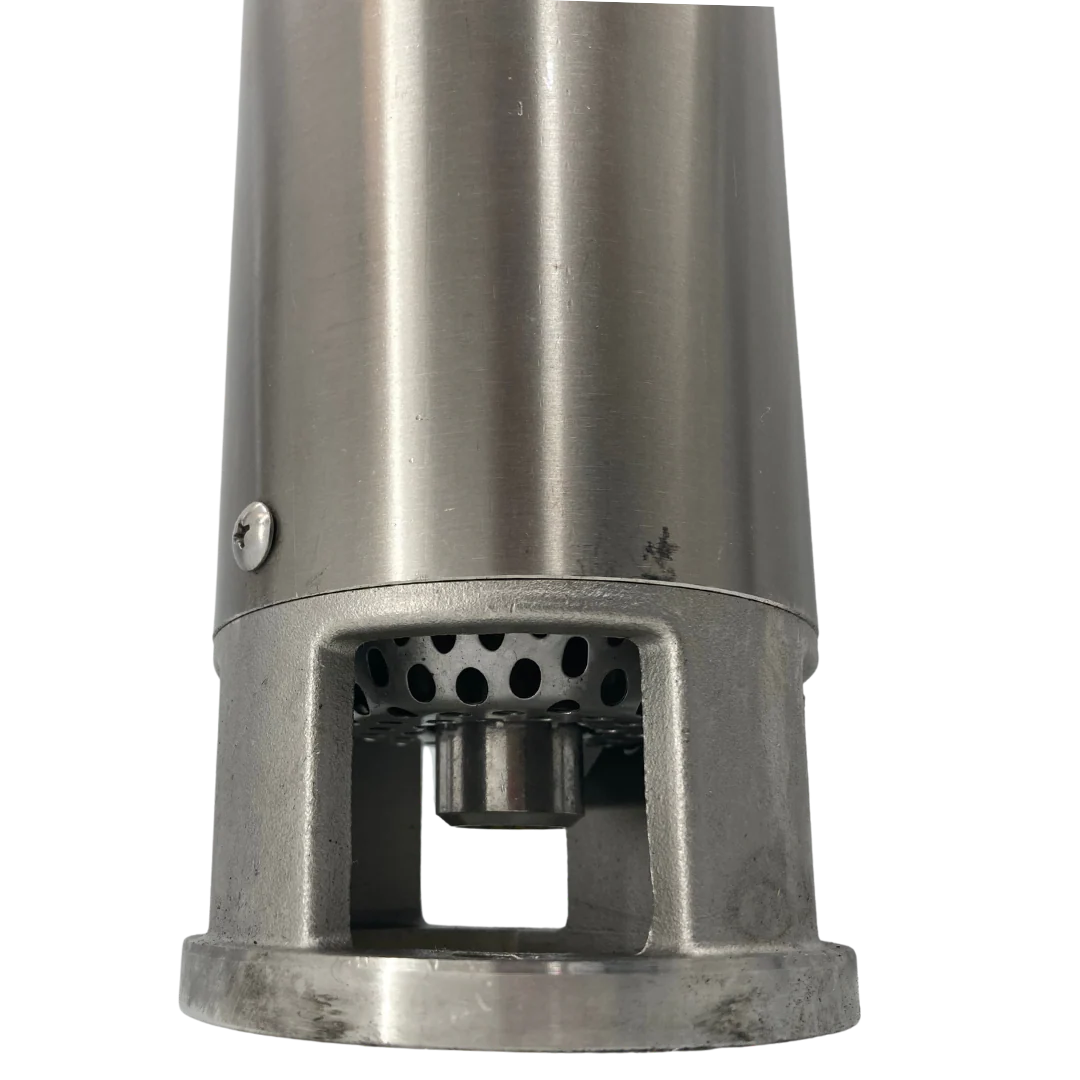

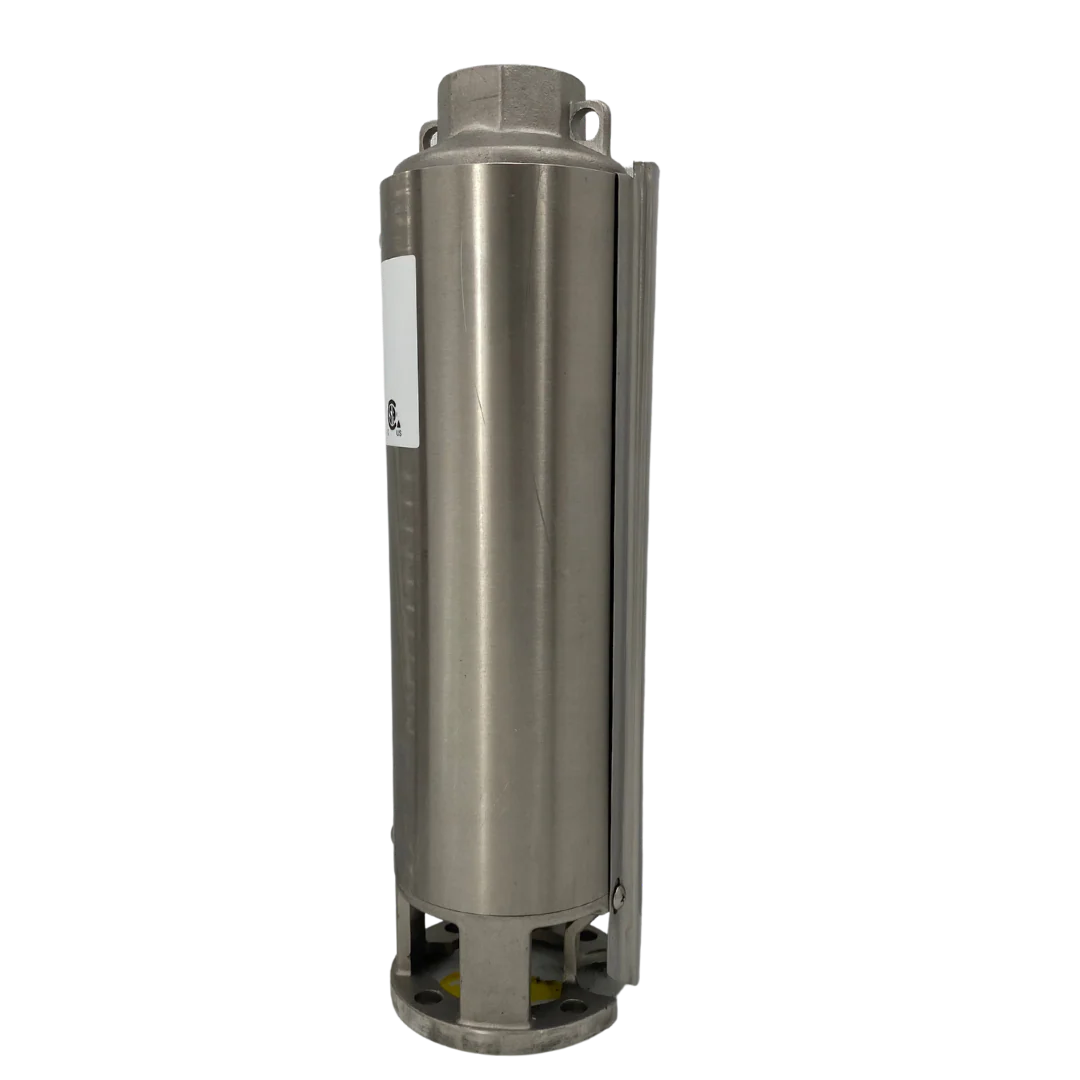

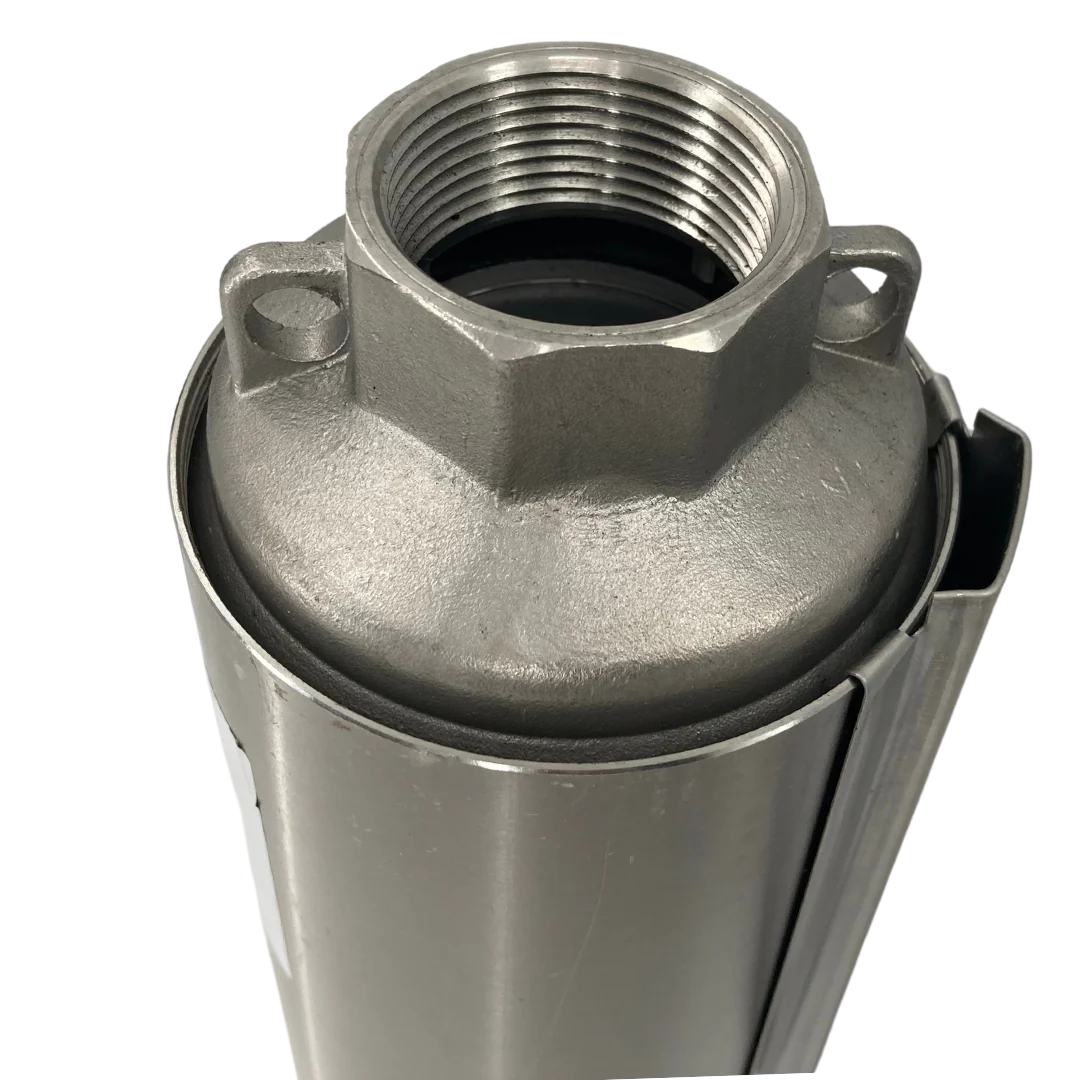

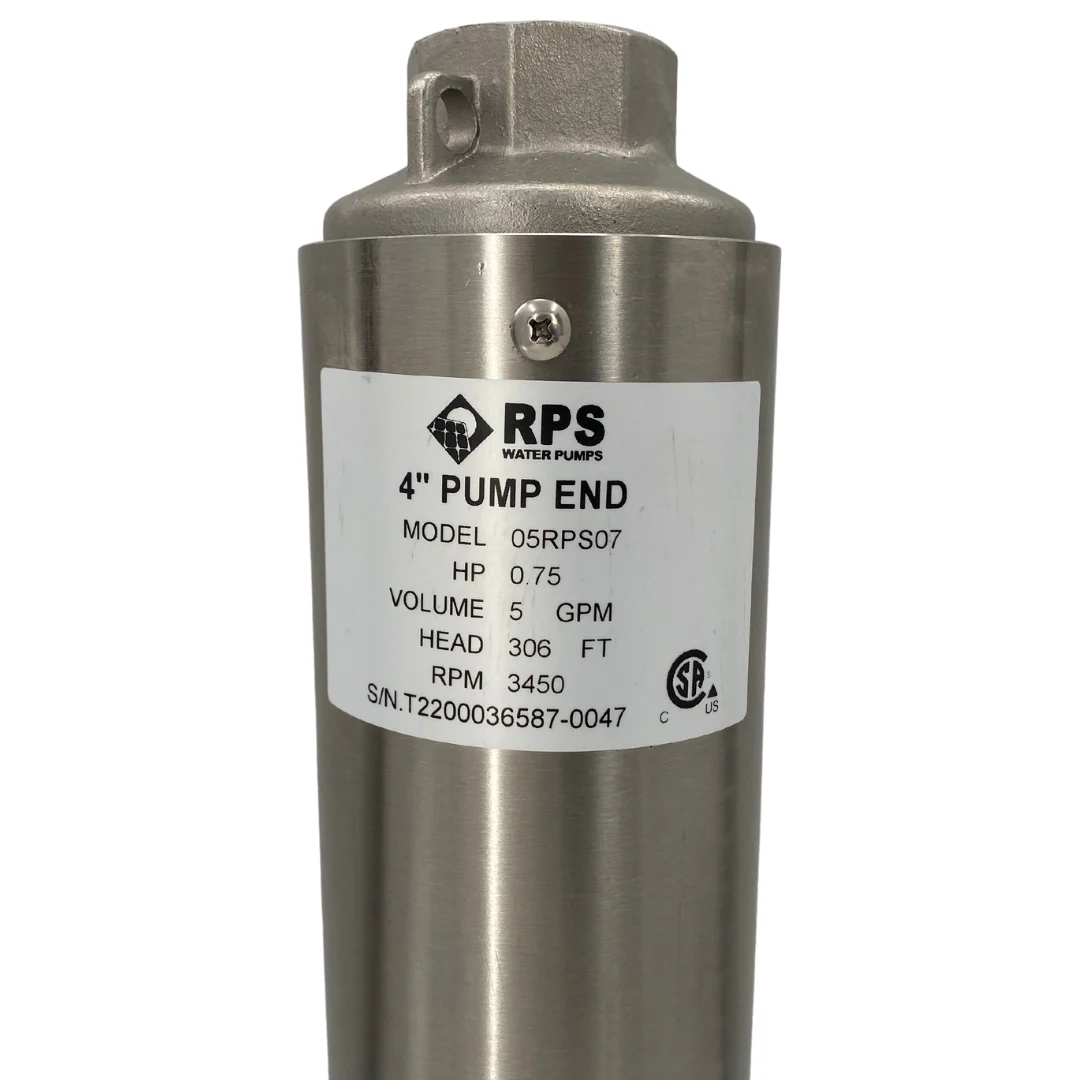

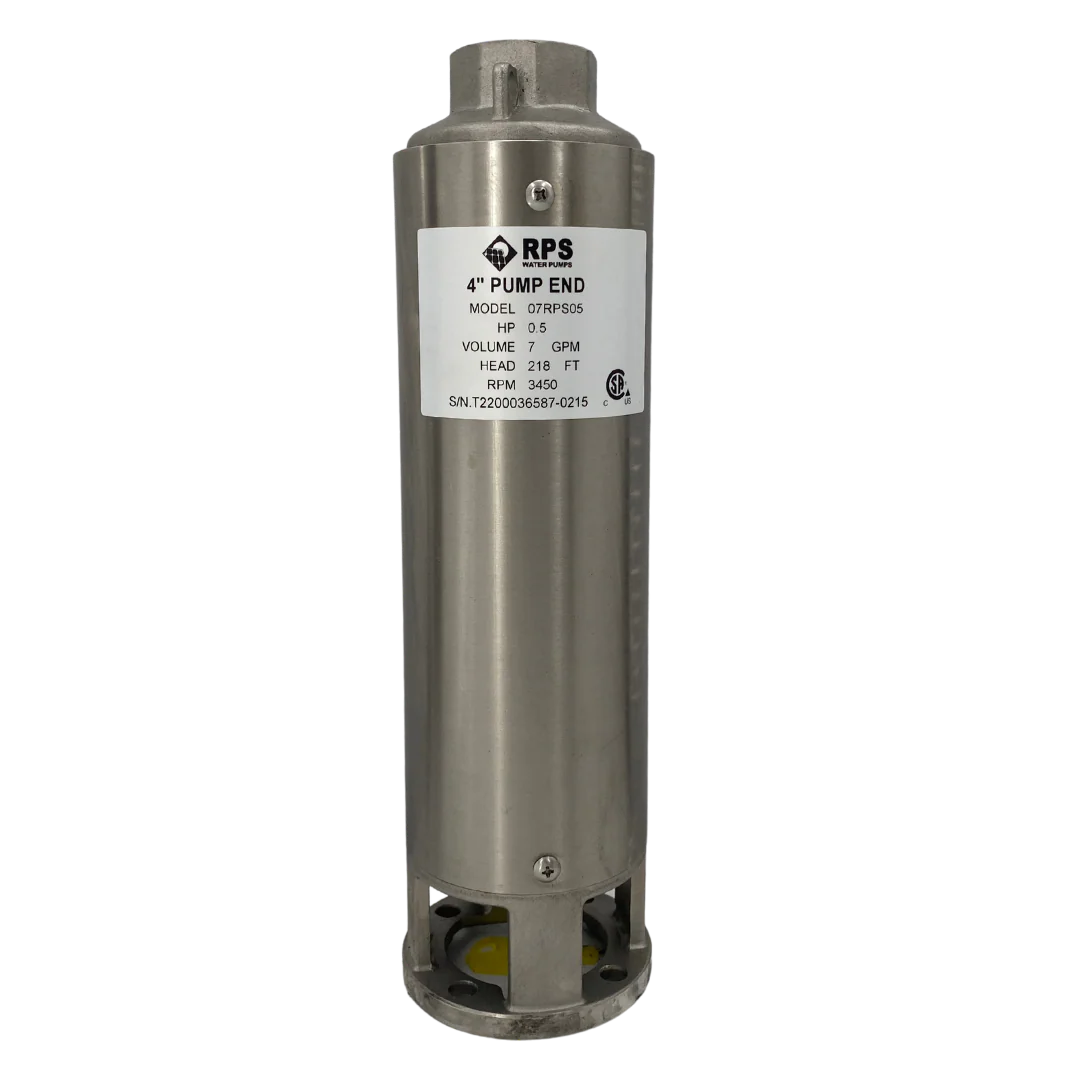

A 4-8GPM Pump End, made from hardy stainless steel construction. Paired with a 1/2HP motor end, shop RPS motor ends here.

Compatible with motors from brands such as Franklin Electric, Goulds, Grundfos, Pentair and Berkley.

NSF Drinking Water and UL Compliant

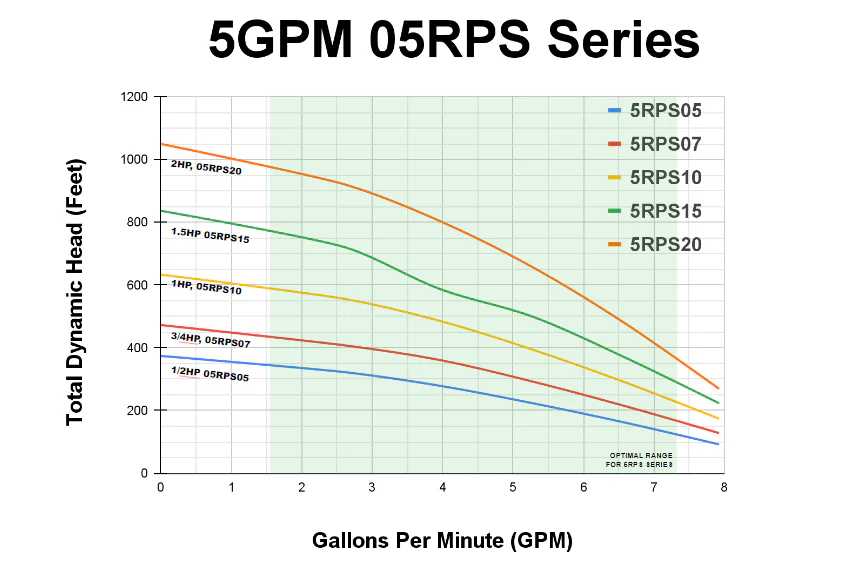

Total Head	Gallons Per Minute (GPM)
No head	8
50 feet	8
100 feet	7
150 feet	6.5
200 feet	5.5
250 feet	4.5
Above 250 feet	Size Up for Optimal Performance



Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.

10 PSI = 23 feet of head

20 PSI = 46 feet of head

30 PSI = 70 feet of head

40 PSI = 90 feet of head

50 PSI = 115 feet of head

60 PSI = 140 feet of head

Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!

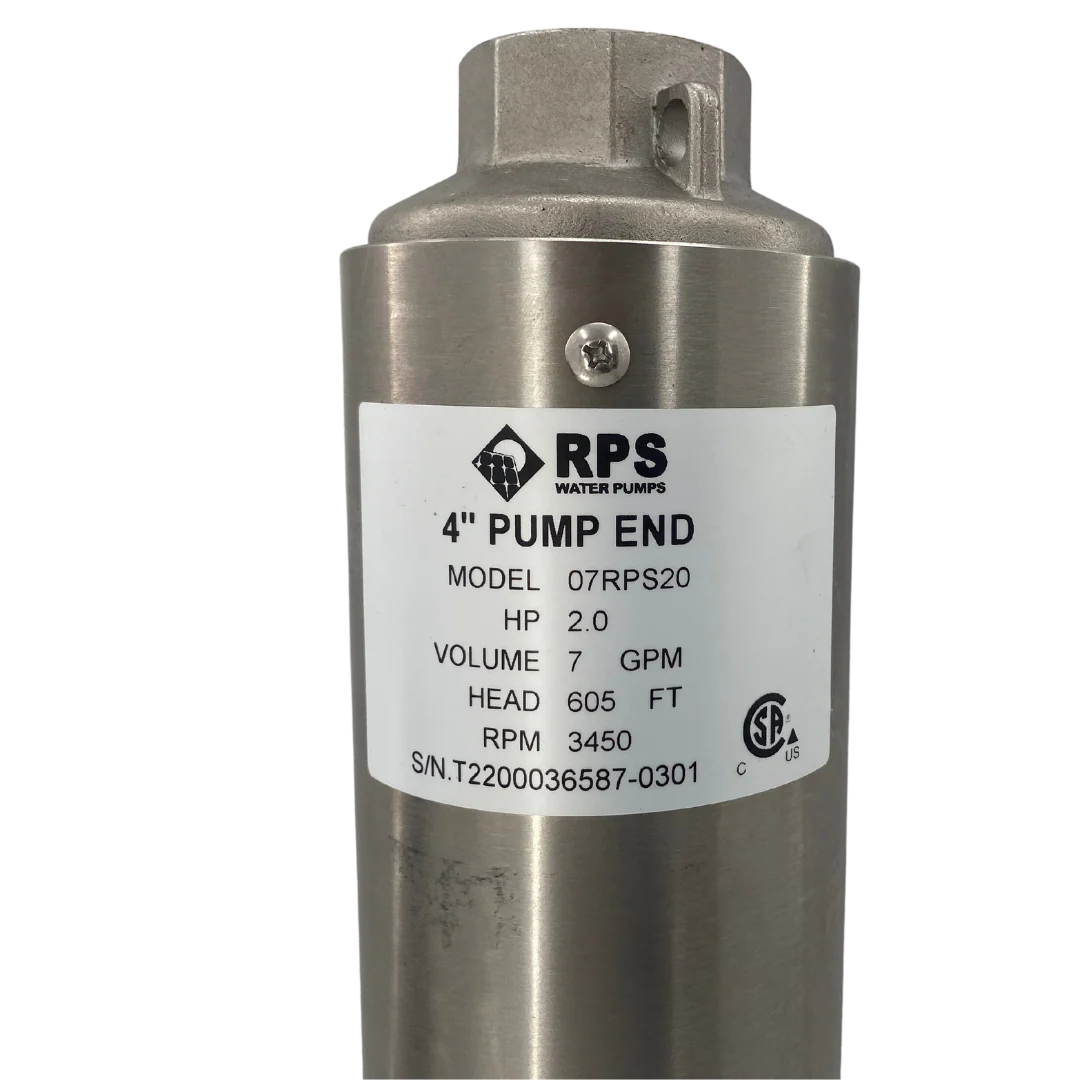

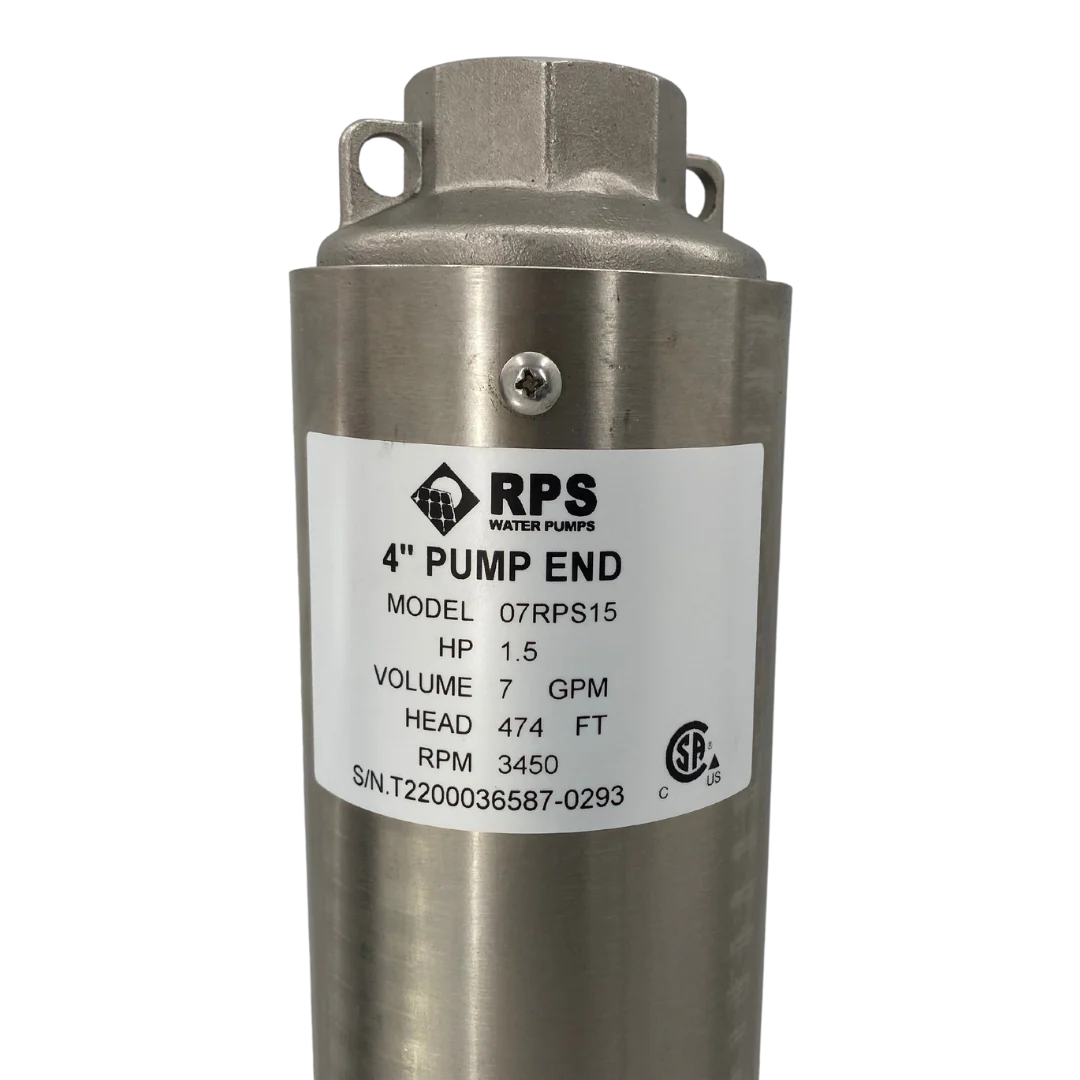

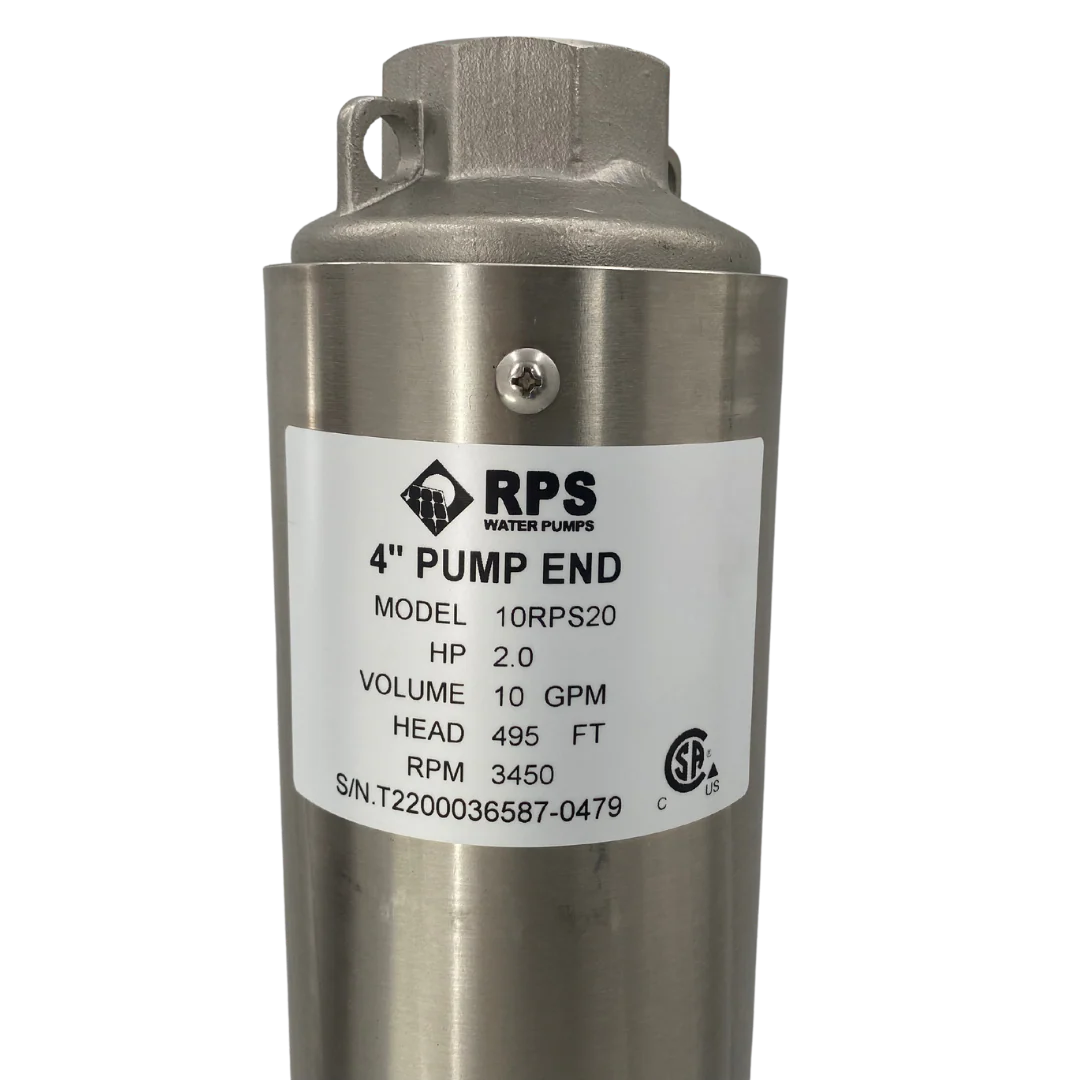

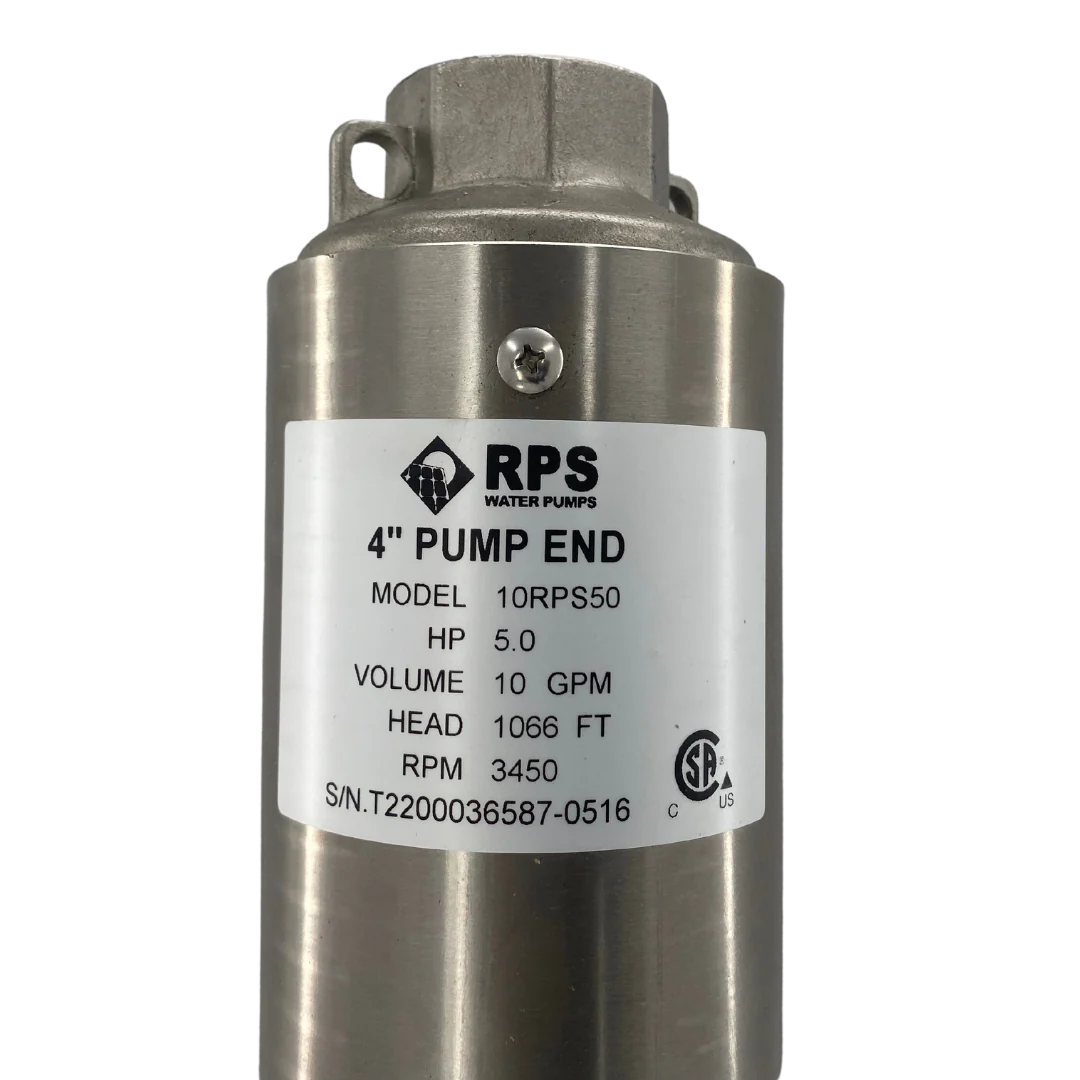

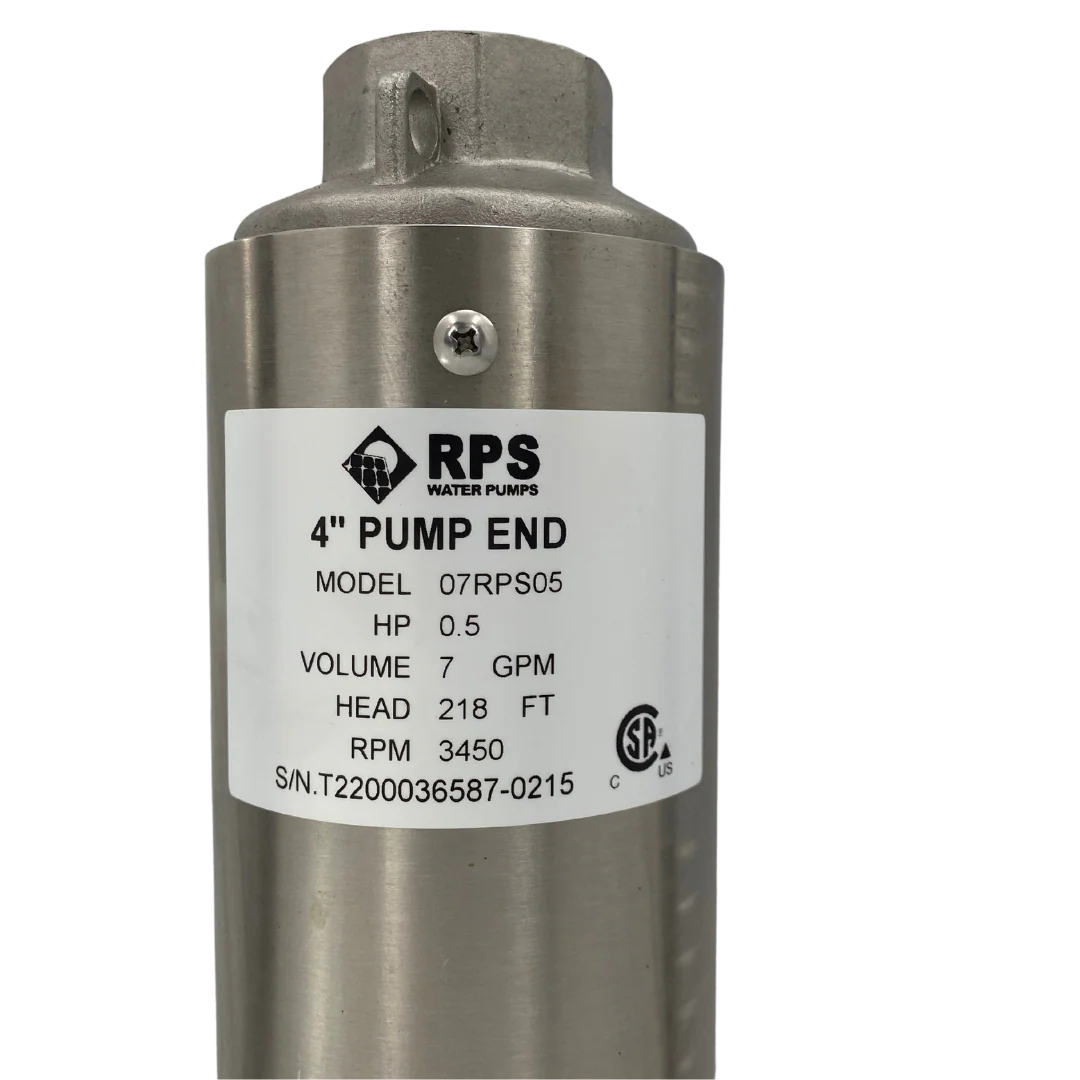

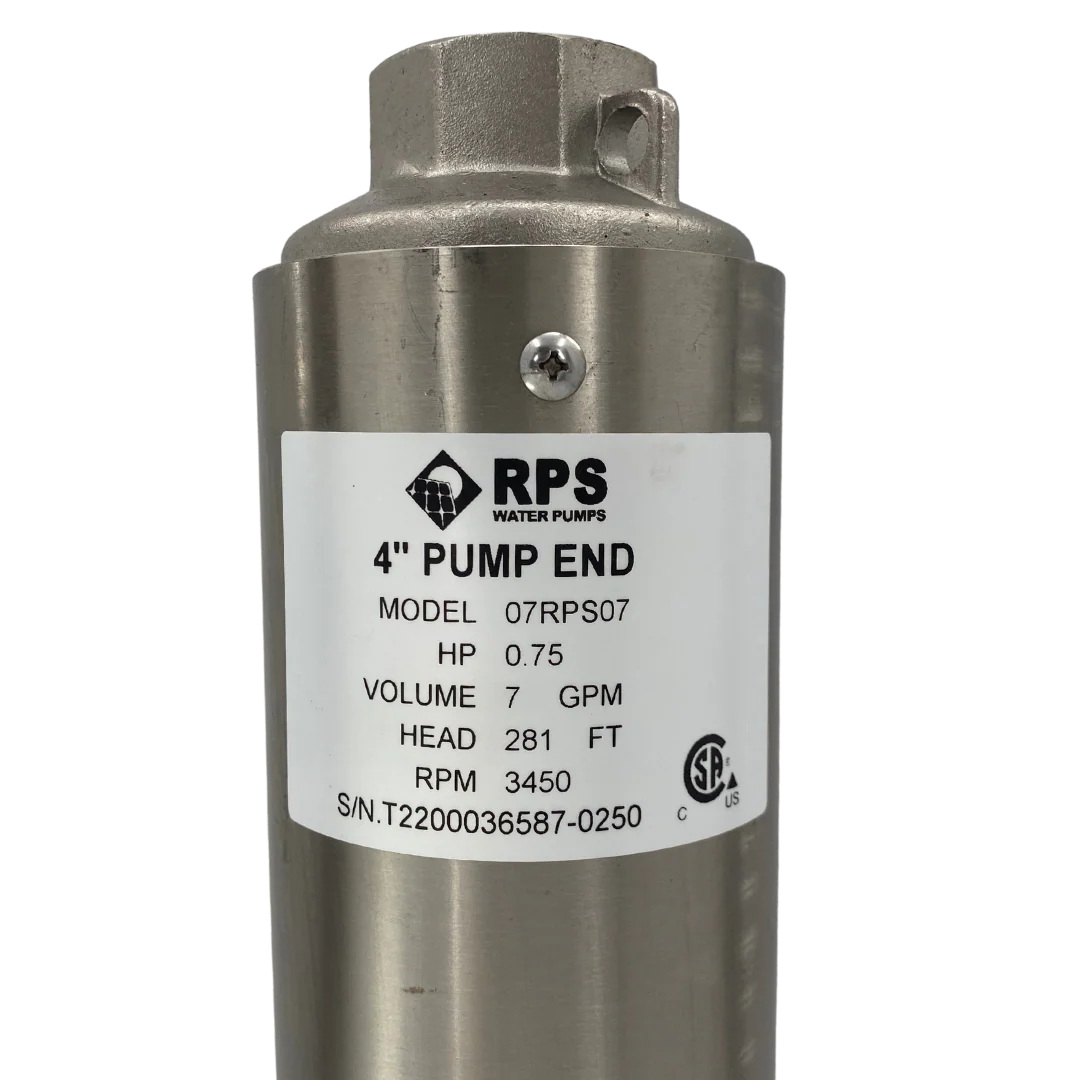

Need more water? Check out the other 05RPS Series Models!
