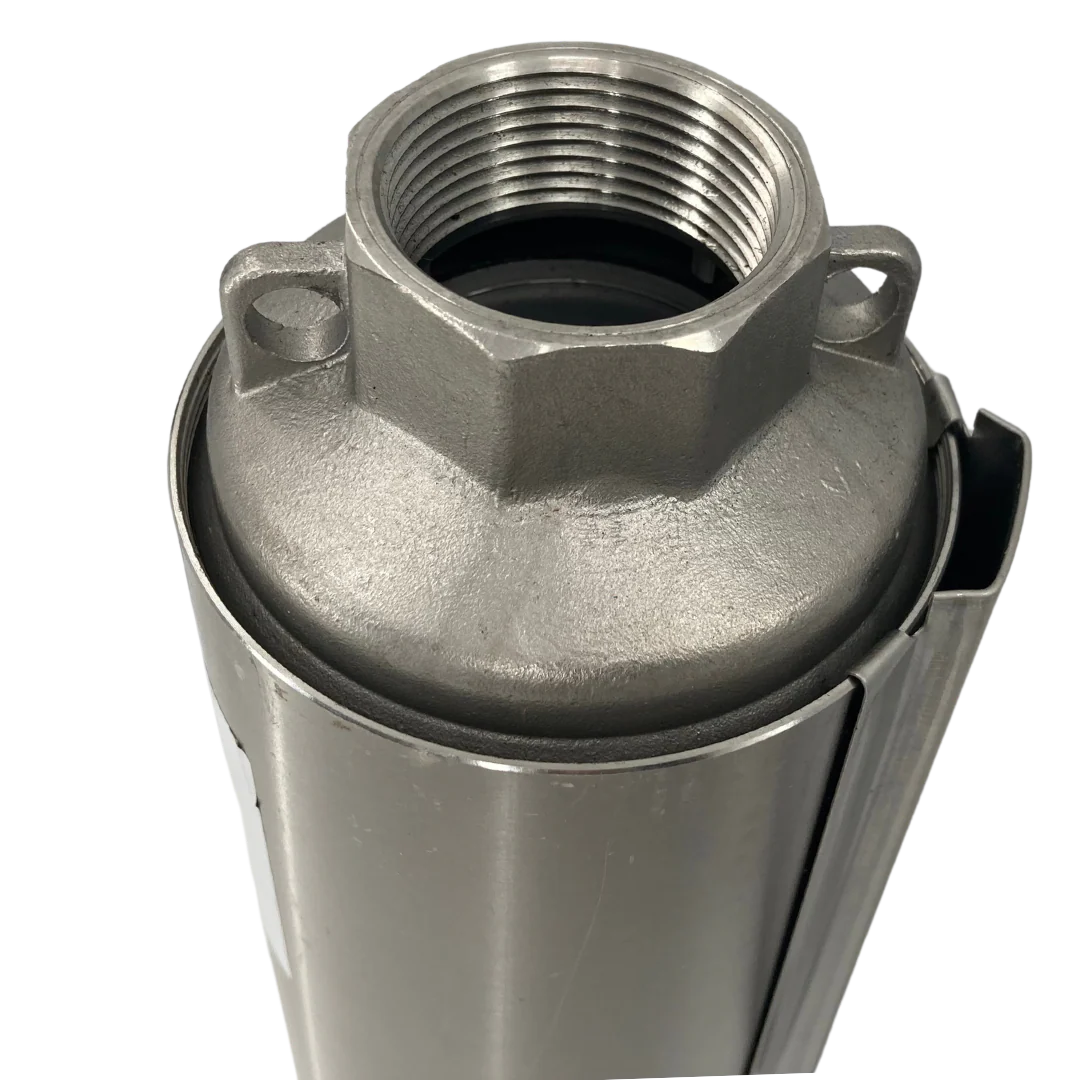

07RPS series pumps are designed for low flow applications of 13 GPM or under. They can be self-installed or placed using a local installer. At 300 feet of head the 07RPS10 will pump 9 GPM! 1.25" FNPT Outlet.

This RPS pump uses a hearty 3 Wire Single Phase 1HP Motor and 3.85″ diameter pump end. The Outlet includes a built in check valve, most people add on an additional external check valve as well. The most efficient brushless motors mean no replacement of carbon brushes and years of smooth, reliable performance. Impellers are made of a composite material resistant to abrasion and chemical damage. Encapsulated winding for superior short protection. The entire body is made of corrosion resistant 304 stainless steel, and compliant to all drinking water standards. Includes a starter box matched to the pump HP with starting capacitor.

For homeowners with deeper wells, a 400 ft deep well pump like the 07RPS10 provides a reliable and energy-efficient solution.

NSF Drinking Water and UL Compliant

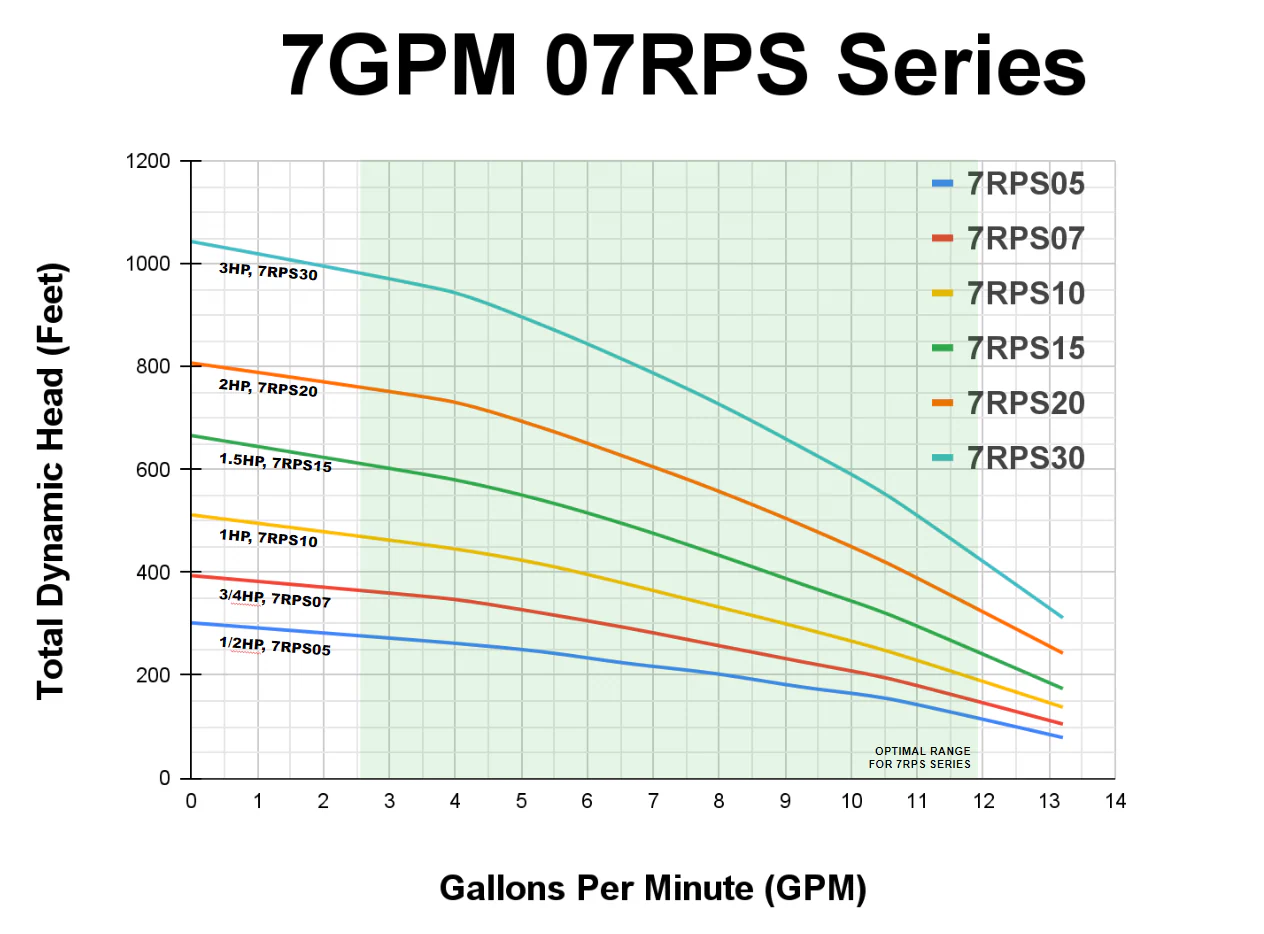

Total Head	Gallons Per Minute (GPM)
No head	13.2
50 feet	13.2
100 feet	13.2
150 feet	12.5
200 feet	11.5
250 feet	10.5
300 feet	9
350 feet	7.5
400 feet	5.5
Above 400 feet	Size Up for Optimal Performance



Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.

10 PSI = 23 feet of head

20 PSI = 46 feet of head

30 PSI = 70 feet of head

40 PSI = 90 feet of head

50 PSI = 115 feet of head

60 PSI = 140 feet of head

Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!

Need more water? Check out the other 07RPS Series Models!
